Description

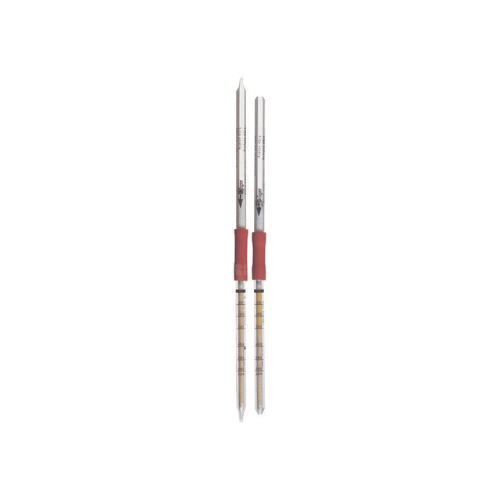

Dräger Tubes For Short Term Measurements: Acetone (40/a)
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for Acetone (40/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | 40 to 80 ppm |
| Number of Strokes n: | 1 |
| Time for Measurement: | approx. 1 min. |
| Standard Deviation: | ± 15 to 20 % |
| Colour Change: | pale yellow to yellow |
Ambient Operating Conditions:
| Temperature: | 5 to 40°C |
| Absolute Humidity | 5 to 40 mg H2O/L |
Reaction Principle:
Acetone + 2.4-Dinitrophenylhydrazine ~> yellow hydrazone.
Cross Sensitivity:
Other ketones are indicated but with different sensitivities. Aldehydes are indicated. 500 ppm ethylacetate does not affect the indication. Ammonia causes the indicating layer to turn yellowish brown.
