Description

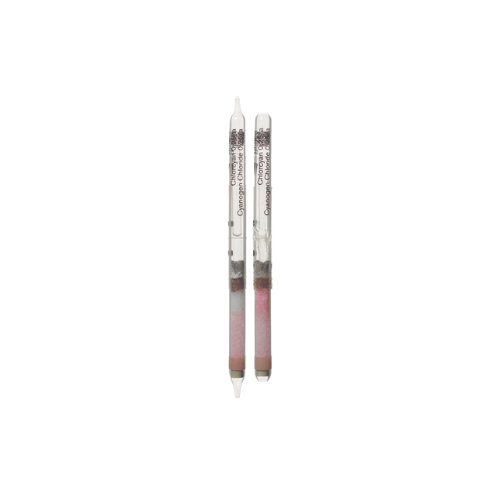

Dräger Tubes For Short Term Measurements: Cyanogen Chloride 0.25/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Cyanogen Chloride 0.25/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | 0.25 to 5 ppm |
| Number of Strokes n: | 20 to 1 |
| Time for Measurement: | max. 5 min |
| Standard Deviation: | ± 30 % |
| Colour Change: | white to pink |
Ambient Operating Conditions:
| Temperature: | 5 to 40 °C |
| Absolute Humidity | < 50 mg H2O / L |
Reaction Principle:
a) CICN + pyridine ~> glutaconaldehyde cyanamide b) Glutaconaldehyde + barbituric acid ~> pink reaction product
Cross Sensitivity:
Cyanogen bromide is indicated as well, but with a different sensitivity. Calibration data is not available..
