Description

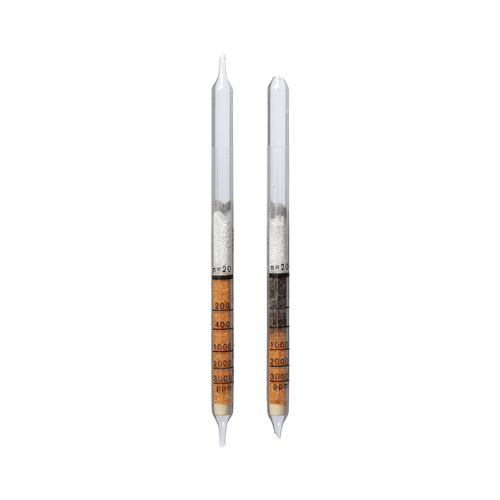

Dräger Tubes For Short Term Measurements: Ethyl Acetate 200/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Ethyl Acetate 200/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
| Part no | Dräger Tube | Substance | Measurement Range |
| CH20201 | Ethyl Acetate 200/a | Acrylonitrile | 25 to 250 ppm |
| i-Amyl Acetate | 200 to 1000 ppm | ||
| n-Amyl Acetate | 200 to 1000 ppm | ||
| n-Butyl Acetate | 200 to 3000 ppm | ||
| Ethyl Acetate | 200 to 9000 ppm | ||
| Isoamyl Alcohol | Qualitative | ||
| Iso-Propyl Acetate | 200 to 3000 ppm | ||
| Methyl Acetate | 200 to 3000 ppm | ||
| 2,4-Pentanedione | Qualitative |
Application Range:
| Standard Measuring Range: | 200 to 3,000 ppm |
| Number of Strokes n: | 20 |
| Time for Measurement: | approx. 5 min |
| Standard Deviation: | ± 15 to 20 % |
| Colour Change: | orange to green brown |
Ambient Operating Conditions:
| Temperature: | 17 to 40 °C |
| Absolute Humidity | 3 to 15 mg H2O / L |
Reaction Principle:
CH3COOC2H5 + CrVI ~> CrIII + various oxidation products
Cross Sensitivity:
Many petroleum hydrocarbons, alcohols, aromatics and esters are indicated, but with different sensitivities. It is impossible to differentiate between them..
