Description

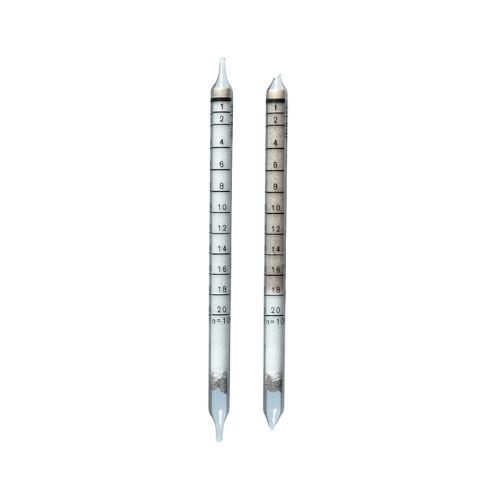

Dräger Tubes For Short Term Measurements: Hydrogen Sulfide 1/c
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Hydrogen Sulfide 1/c).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | 10 to 200 / 1 to 20 ppm |
| Number of Strokes n: | 1 |
| Time for Measurement: | approx. 20 sec./ approx. 3 min |
| Standard Deviation: | ± 5 to 10 % |
| Colour Change: | white to pale brown |
Ambient Operating Conditions:
| Temperature: | 0 to 40 °C |
| Absolute Humidity | max. 30 mg H2O / L |
Reaction Principle:
H2S + Pb2+ ~> PbS + 2 H+
Cross Sensitivity:
Should sulfur dioxide occur simultaneously in concentrations well above their TLV, this may result in plus errors of up to 50%. Sulfur dioxide alone is not indicated..
