Description

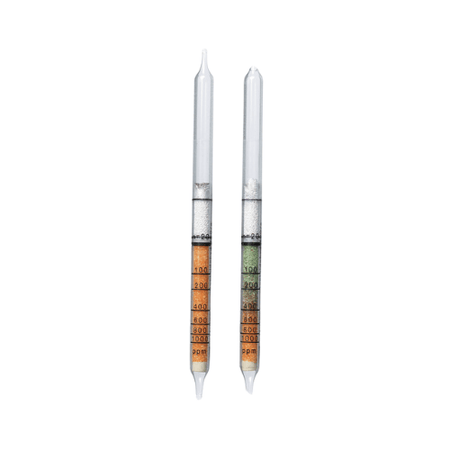

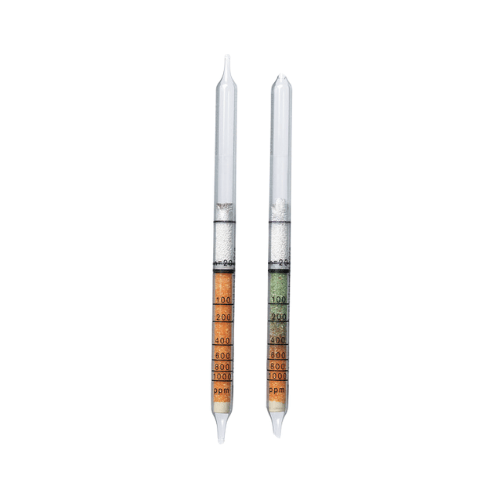

Dräger Tubes For Short Term Measurements: Acetaldehyde 100/A
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for Acetaldehyde (100/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
| Part no | Dräger Tube | Substance | Measurement Range |
| 6726665 | Acetaldehyde 100/a | Acetaldehyde | 100 to 1000 ppm |
| Isobutyl Acetate | 100 to 1000 ppm | ||
| 2-Methylpropan-2-ol | 50 to 500 ppm | ||
| Methyl-tert-butylether | 100 to 1000 ppm |
Application Range:
| Standard Measuring Range: | 100 to 1,000 ppm |
| Number of Strokes n: | 20 |
| Time for Measurement: | approx. 5 min |
| Standard Deviation: | ± 15 to 20 % |
| Colour Change: | orange to brownish-green |
Ambient Operating Conditions:
| Temperature: | 0 to 40°C |
| Absolute Humidity | 3 to 15 mg H2O/L |
Reaction Principle:
CH3CHO + CrVI ~> CrIII + various products
Cross Sensitivity:
The tube does not differentiate between different aldehydes. Ethers, ketones, esters, aromatics and petroleum hydrocarbons are indicated, but with different sensitivities.
