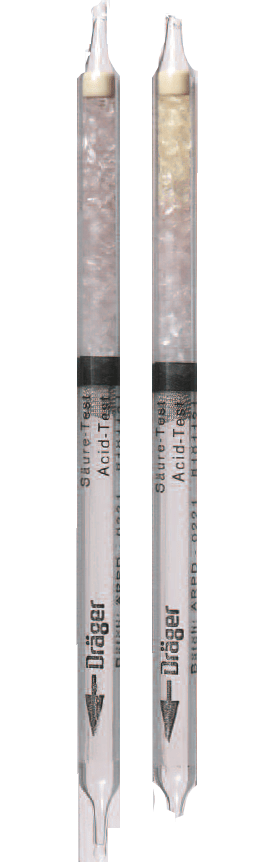

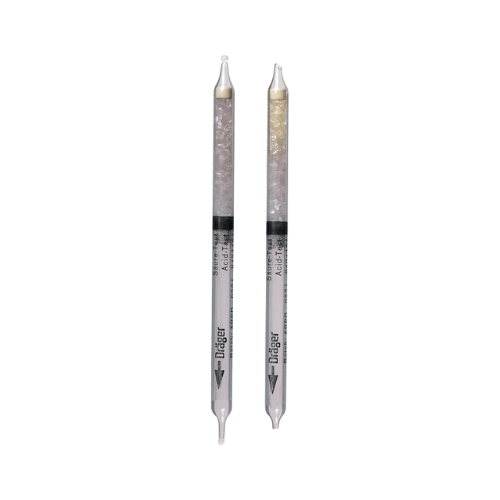

Dräger Tubes For Short Term Measurements: Acid Test
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for Acid tests.
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | Qualitative identification of acid gases. |
| Number of Strokes n: | 1 |
| Time for Measurement: | approx. 3 s. |
| Standard Deviation: | ± 30 % |
| Colour Change: | blue violet to yellow or pink yellow |
Ambient Operating Conditions:
| Temperature: | 0 to 40°C |
| Absolute Humidity | 3 to 15 mg H2O/L |
Reaction Principle:
HCl + pH Indicator ~> pink yellow reaction product.
Cross Sensitivity:
This tube indicates various acid gases with differing sensitivities and colors ranging from yellow to pink. It is impossible to differentiate them.
