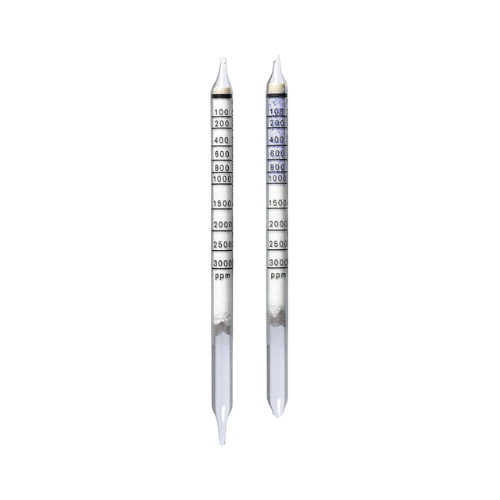

Dräger Tubes For Short Term Measurements: Carbon Dioxide 100/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Carbon Dioxide 100/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | 100 to 3,000 ppm |
| Number of Strokes n: | 10 |
| Time for Measurement: | approx. 4 min. |
| Standard Deviation: | ± 10 to 15 % |
| Colour Change: | white to pale violet/blue violet |
Ambient Operating Conditions:
| Temperature: | 15 to 25 °C |
| Absolute Humidity | max. 23 mg H2O / L |
Reaction Principle:
CO2 + N2H4 ~> NH2-NH-COOH
Cross Sensitivity:
No influence on the reading by 10 ppm hydrogen sulfide and 2 ppm sulfur dioxide..
