Description

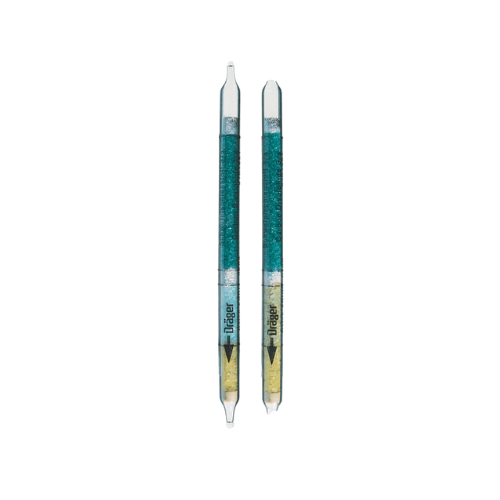

Dräger Tubes For Short Term Measurements: Carbon Disulfide 3/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Carbon Disulfide 3/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | 3 to 95 ppm |
| Number of Strokes n: | 15 to 1 |
| Time for Measurement: | max. 2 min |
| Standard Deviation: | ± 30 % |
| Colour Change: | pale blue to yellow green |
Ambient Operating Conditions:
| Temperature: | 0 to 40 °C |
| Absolute Humidity | < 30 mg H2O / L |
Reaction Principle:
2 CS2 + 4 NHR2 + Cu2+ ~> Cu (SCSNR2)2 + 2 NH2R2+
Cross Sensitivity:
Hydrogen sulfide in the TLV range is retained in the pre-layer and does not interfere..
