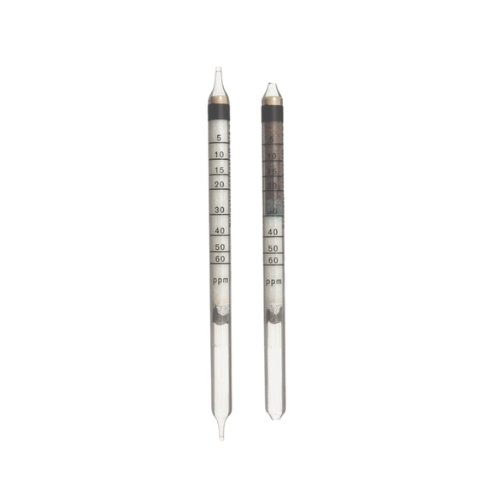

Dräger Tubes For Short Term Measurements: Carbon Disulfide 5/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Carbon Disulfide 5/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | 5 to 60 ppm |
| Number of Strokes n: | 11 |
| Time for Measurement: | approx. 3 min |
| Standard Deviation: | ± 10 to 15 % |
| Colour Change: | white to brown green |
Ambient Operating Conditions:
| Temperature: | 0 to 40 °C |
| Absolute Humidity | 3 to 15 mg H2O / L |
Reaction Principle:
CS2 + I2O5 ~> I2
Cross Sensitivity:
Aliphatic and aromatic hydrocarbons, carbon monoxide and hydrogen sulfide are indicated, but with different sensitivities. It is impossible to measure carbon disulfide in the presence of these substances..
