Description

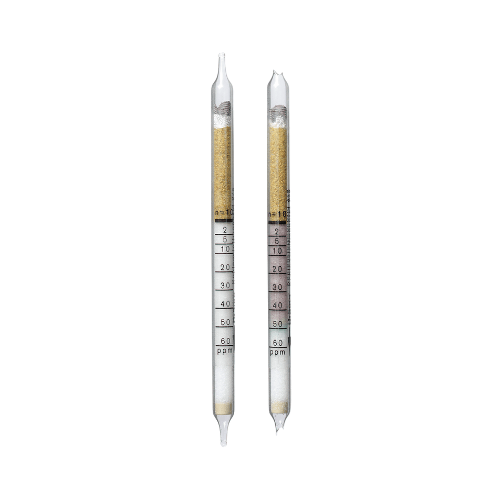

Dräger Tubes For Short Term Measurements: Carbon Monoxide 2/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Carbon Monoxide 2/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Part no | Dräger Tube | Substance | Measurement Range |
6733051 | Carbon Monoxide 2/a | Carbon Monoxide | 2 to 300 ppm |
Carbonyl Sulphide | Qualitative |
Application Range:
Standard Measuring Range: | 2 to 60 ppm / 25 to 300 ppm |
Number of Strokes n: | 10 |
Time for Measurement: | approx. 4 min / 50 sec. |
Standard Deviation: | ± 10 to 15 % |
Colour Change: | white to brownish pink/green |
Ambient Operating Conditions:
Temperature: | 0 to 50 °C |
Absolute Humidity | 2 to 20 mg H2O / L |
Reaction Principle:
5 CO + I2O5 ~> I2 + 5 CO2
Cross Sensitivity:
The following have no influence on the display of 10 ppm CO (respectively): 100 ppm hydrogen sulphide 50 ppm sulphur dioxide 15 ppm nitrogen dioxide 10 ppm CO + 200 ppm octane: display approx. 30 ppm 10 ppm CO + 40 ppm butadiene: display approx. 15 ppm 10 ppm CO +30 (100) ppm benzene: display approx. 15 (20 - 30) ppm 10 ppm CO + 40 ppm chloroform: display approx. 60 ppm 10 (60) ppm acetylene: display approx. 5 (15) ppm With the insertion of a carbon attachment tube (CH 24101), 10ppm CO can still be measured in the presence of 10000 ppm n-octane.
