Description

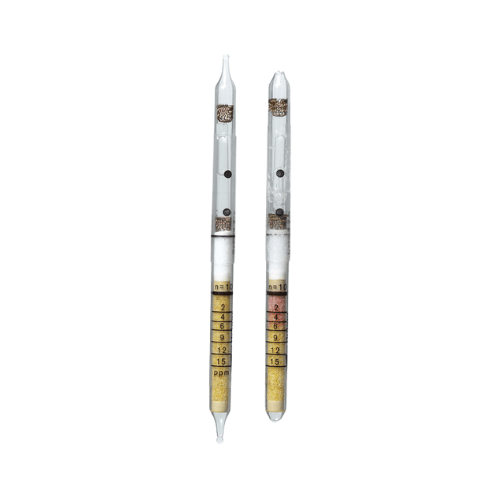

Dräger Tubes For Short Term Measurements: Cyanide 2/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Cyanide 2/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | 2 to 15 mg/m3 |
| Number of Strokes n: | 10 (+2) |
| Time for Measurement: | approx. 2.5 min |
| Standard Deviation: | ± 20 to 30 % |
| Colour Change: | yellow to red |
Ambient Operating Conditions:
| Temperature: | 0 to 30 °C |
| Absolute Humidity | < 20 mg H2O / L |
Reaction Principle:
a) 2 KCN + H2SO4 ~> 2 HCN + K2SO4 b) 2 HCN + HgCl2 ~> 2 HCI + Hg(CN)2 c) HCI + methyl red ~> red reaction product
Cross Sensitivity:
Free hydrogen cyanide is indicated already before breaking the ampoule. Acid gases are indicated with different sensitivities. A certain portion of the cyanide can have reacted with the CO2 in the air through hydrolysis. It is impossible to measure cyanide in the presence of phosphine..
