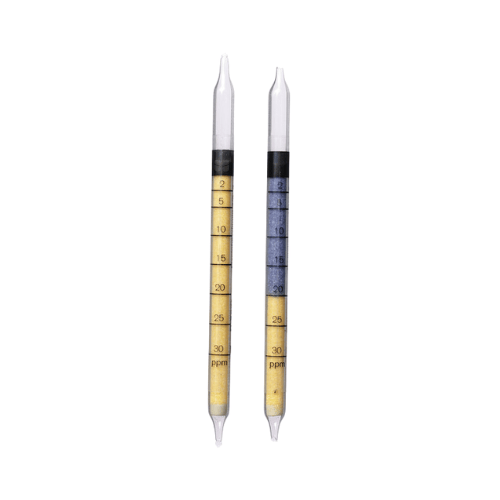

Dräger Tubes For Short Term Measurements: Cyclohexylamine 2/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Cyclohexylamine 2/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
| Part no | Dräger Tube | Substance | Measurement Range |
| 6728931 | Cyclohexaylamine 2/a | n-Butylamine | 2 to 30 ppm |
| Cyclohexylamine | 2 to 30 ppm | ||
| Isopropyl Amine | 2 to 30 ppm | ||
| n-Propylamine | 2 to 30 ppm | ||
| iso-Propylamine | 2 to 30 ppm |
Application Range:
| Standard Measuring Range: | 2 to 30 ppm |
| Number of Strokes n: | 10 |
| Time for Measurement: | approx. 4 min |
| Standard Deviation: | ± 15 to 20 % |
| Colour Change: | yellow to blue |
Ambient Operating Conditions:
| Temperature: | 15 to 35 °C |
| Absolute Humidity | 3 to 15 mg H2O / L |
Reaction Principle:
C6H11NH2 + pH-indicator ~> blue reaction product
Cross Sensitivity:
Other basic substances such as organic amines and ammonia are indicat ed as well..
