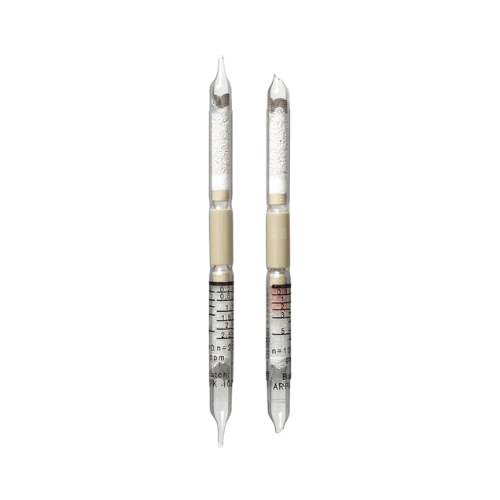

Dräger Tubes For Short Term Measurements: Formaldehyde 0.2/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Formaldehyde 0.2/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Part no | Dräger Tube | Substance | Measurement Range |
6733081 | Formaldehyde 0.2/a | Formaldehyde | 0.2 to 5 ppm |
Propanal | 100 to 3000 ppm | ||
Vinyl Acetate | Qualitative |
Application Range:
Standard Measuring Range: | 0.5 to 5 / 0.2 to 2.5 ppm |
Number of Strokes n: | 10 |
Time for Measurement: | approx. 1.5 min / approx. 3 min |
Standard Deviation: | ± 20 to 30 % |

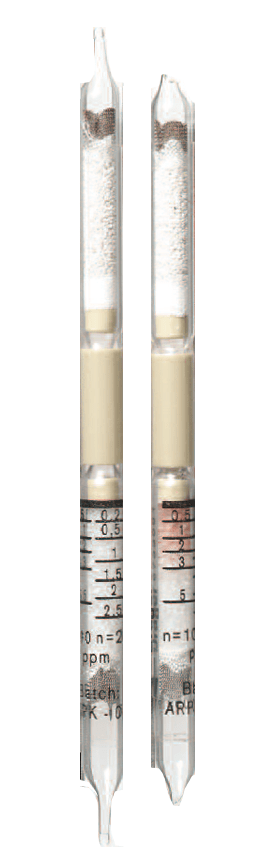

Colour Change: | white to pink |
Ambient Operating Conditions:
Temperature: | 10 to 40 °C |
Absolute Humidity | 3 to 15 mg/ L |
Reaction Principle:
HCHO + C6H4(CH3)2 + H2SO4 ~> quinoid reaction products
Cross Sensitivity:
Styrene, vinyl acetate, acetaldehyde, acrolein, diesel fuel and furfuryl alcohol are indicated with a yellowish brown discoloration. 500 ppm octane, 5 ppm nitric oxide and 5 ppm nitrogen dioxide have no effect.
Extension of the Measuring Range
The measuring range can be extended in conjunction with the activation tube (Order No. 81 01 141).
