Description

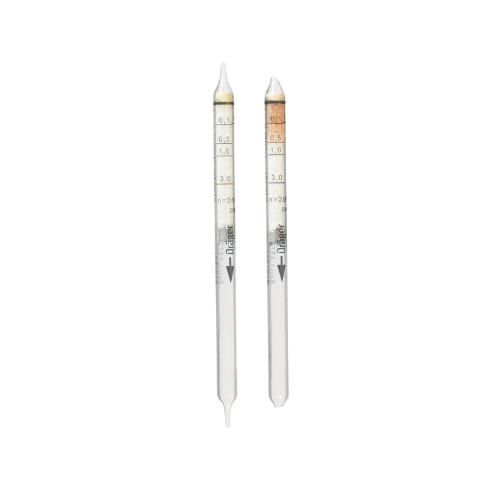

Dräger Tubes For Short Term Measurements: Hydrogen Peroxide 0.1/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Hydrogen Peroxide 0.1/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | 0.1 to 3 ppm |
| Number of Strokes n: | 20 |
| Time for Measurement: | approx. 3 min |
| Standard Deviation: | ± 10 to 15 % |
| Colour Change: | white to brown |
Ambient Operating Conditions:
| Temperature: | 10 to 25 °C |
| Absolute Humidity | 3 to 10 mg H2O / L |
Reaction Principle:
2 H2O2 + 2 KI ~> I2 + 2 H2O + O2
Cross Sensitivity:
It is impossible to measure hydrogen peroxide in the presence of chlorine or nitrogen dioxide. Only hydrogen peroxide vapor is indicated, not the aerosols..
