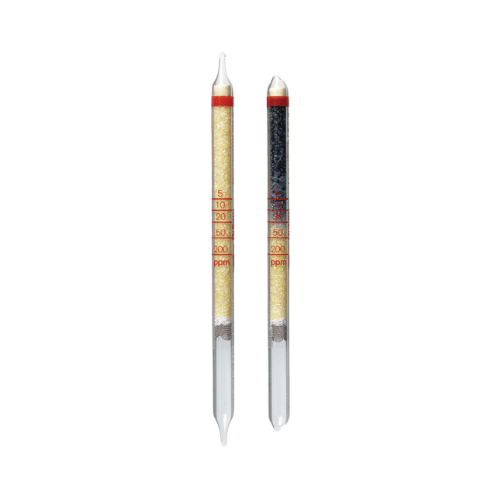

Dräger Tubes For Short Term Measurements: Methyl Acrylate 5/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Methyl Acrylate 5/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
| Part no | Dräger Tube | Substance | Measurement Range |
| 6728161 | Methyl Acrylate 5/a | Butyl Acrylate | Qualitative |
| Butyl Methacrylate | Qualitative | ||
| Ethyl Acrylate | 5 to 300 ppm | ||
| Ethyl Glycol Acetate | Qualitative | ||
| Ethyl Methacrylate | 100 to 400 ppm | ||
| Methyl Acrylate | 5 to 200 ppm | ||
| Methyl Methacrylate | 15 to 700 ppm |
Application Range:
| Standard Measuring Range: | 5 to 200 ppm |
| Number of Strokes n: | 20 |
| Time for Measurement: | approx. 5 min |
| Standard Deviation: | ± 30 to 40 % |
| Colour Change: | yellow to blue |
Ambient Operating Conditions:
| Temperature: | 15 to 35 °C |
| Absolute Humidity | 5 to 12 mg H2O / L |
Reaction Principle:
CH2=CH-COOCH3 + Pd-Molybdate complex ~> blue reaction product
Cross Sensitivity:
Other compounds with C=C double bonds are indicated, but with different sensitivities. It is impossible to differentiate between them. It is impossible to measure methyl acrylate in the presence of hydrogen sulfide. Hydrogen sulfide will discolor the indicating layer black. Carbon monoxide in high concentrations discolors the indicating layer pale blue grey..
