The world‘s only Chip Measurement System (CMS) makes spot measurements as easy as 1, 2, 3: insert chip – start measurement – read measurement result on the LCD display.
The Dräger CMS combines the advantages of the Dräger-Tubes with those of an optoelectronic analysis system.
Accurate
The principle of mass current measurement ensures that the instrument remains unaffected by fluctuations in air pressure. Because the chips are calibrated before leaving the factory, there is no need for the user to calibrate the Dräger CMS. Any possible temperature and humidity effects are checked during factory calibration.
The Analyzer is explosion protected and certified in accordance with ATEX (Europe), UL (USA & Canada) and CSA (Canada & USA).
In addition, the system is protected against dust and splash water in accordance with IP 54, and is resistant to electro-magnetic waves.
Remote-System

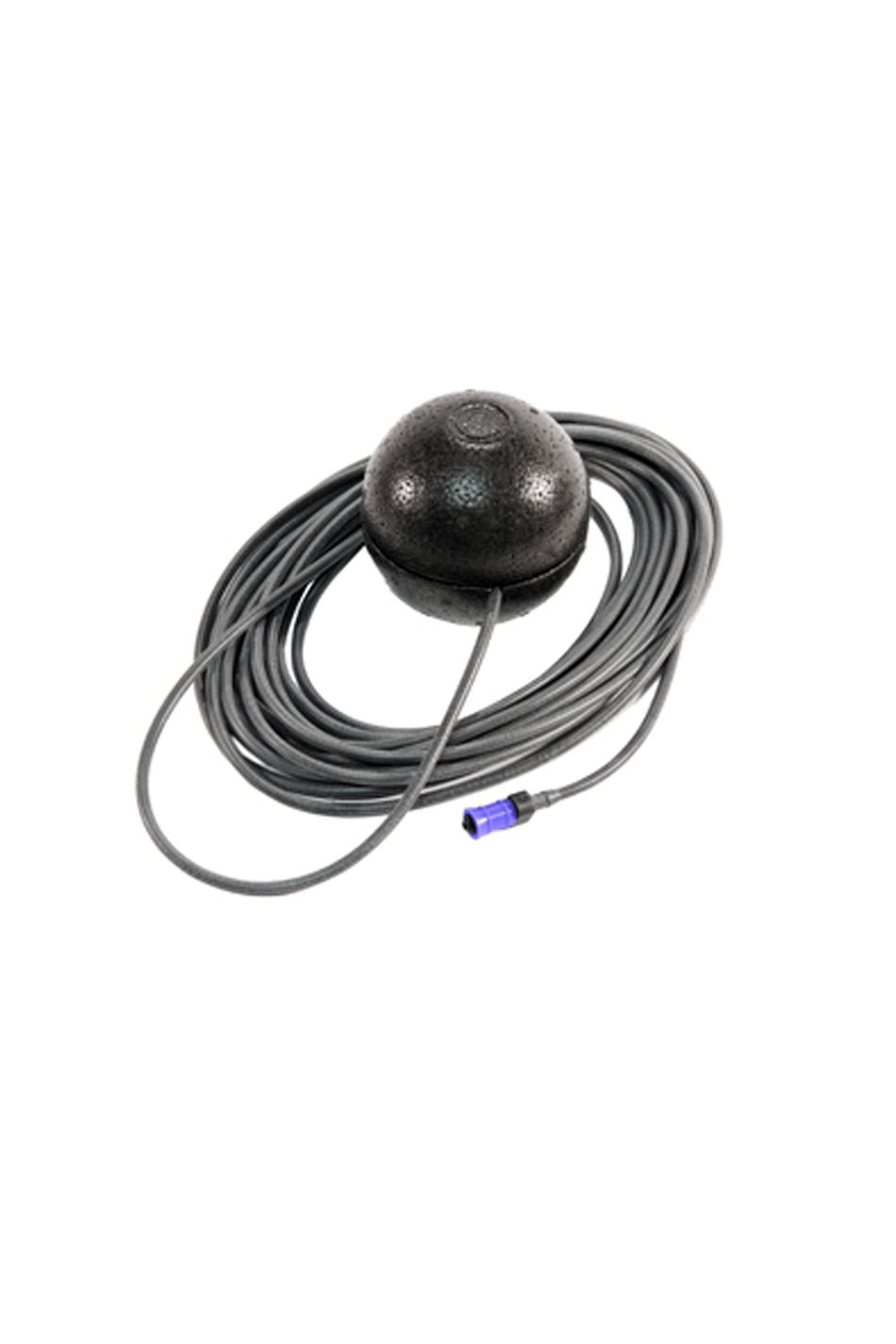

To allow measurements at places which are difficult to access, a Remote-System is available. This comprises of an additional pump and extension hose, and is connected to the back of the Analyzer.
Because the Remote-System is activated by its own switch, the system can remain attached to the Analyzer. A telescopic probe can also be attached to the Remote-System.
Download Dräger CMS Chip Measurement System Product Information:
