Description

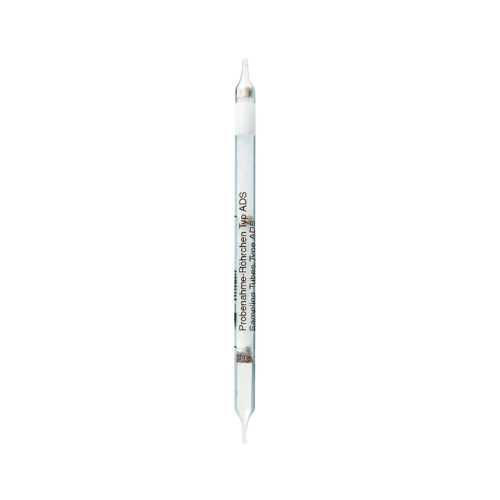

Dräger Sampling Tubes:Sampling Tube Amines
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for Sampling Tube Amines
The tubes come in a pack of 1 tubes and have a shelf life of 2 years.
Application Range:
| Adsorbate: | primary, secondary and tertiary aliphatic amines, dialkyl sulfates, N-heterocyclene |
| Sorption agent: | special silicagel |
| Adsorption layer: | 300 mg |
| Backup layer: | 300 mg |
| Tube length: | 125 mm |
| Outside diameter: | 7 mm |
| Inside diameter: | 5 mm |
Advice for sample-taking:
While sampling the air to be analysed should be sucked in the direction of the imprinted arrow through the tube with a constant flow between approximately 0.3 and 1 L/min. The volume of air to be sucked through is within the range of 1 to 100 L. After sampling the tube has to be sealed with the polyethylene caps supplies.
Note concerning the analysis:
The enriched volatile organic compounds are analysed in accordance with the procedures recommended by BGIA, DFG, NIOSH, OSHA and HSE. For evaluation of the sampling tubes and systems please contact Dräger..
