Description

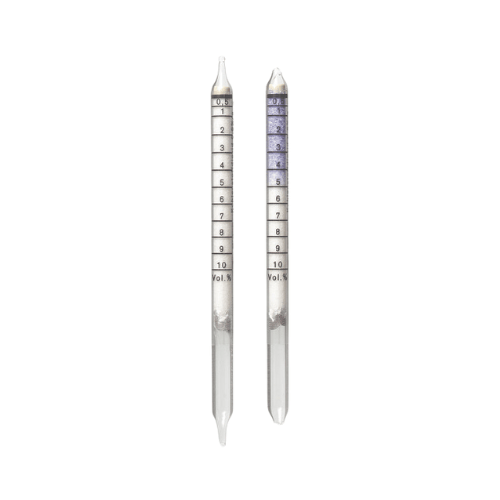

Dräger Tubes For Short Term Measurements: Carbon Dioxide 100/a-P
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Carbon Dioxide 100/a-P).
The tubes come in a pack of 1 tubes and have a shelf life of 2 years.
Application Range:
Use in Aerotest 5000, Aerotest Alpha, MultiTest med. Int., Aerotest HP
| Standard Measuring Range: | 100 to 3,000 ppm |
| Test Volume: | 1L |
| Flow Rate: | 0,2 L / min |
| Time for Measurement: | approx. 5 min |
| Standard Deviation: | ± 10 to 15 % |
| Colour Change: | white to violet |
Ambient Operating Conditions:
| Temperature: | 15 to 25 °C |
| Absolute Humidity: | max. 23 mg H2O / L |
| Pressure: | The tube may only be used for depressurized compressed air |
Reaction Principle:
CO2 + N2H4 ~> NH2-NH-COOH Crystal violet
Cross Sensitivity:
Hydrogen sulfide and sulfur dioxide in the TLV range are not indicated.
Evaluation:
-.
