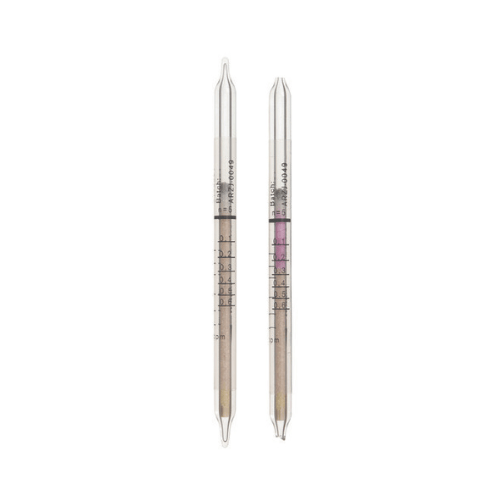

Dräger Tubes For Short Term Measurements: Iodine 0.1/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Iodine 0.1/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | 0.1 to 0.6 ppm / 1 to 5 ppm |
| Number of Strokes n: | 5 |
| Time for Measurement: | approx. 5 min / approx. 1 min |
| Standard Deviation: | ± 15 to 20 % |
| Colour Change: | yellow to pink |
Ambient Operating Conditions:
| Temperature: | 15 to 40 °C |
| Absolute Humidity | ? 20 mg H2O / L |
Reaction Principle:
I2 + HgCl2 ~> HgI2 + Cl2 Cl2 + Indicator ~> pink reaction product
Cross Sensitivity:
Mercaptans, arsine, phosphine and nitrogen dioxide are displayed with varying sensitivities. 10 ppm hydrocyanic acid changes the color of the entire indicating layer to a light orange..
