Description

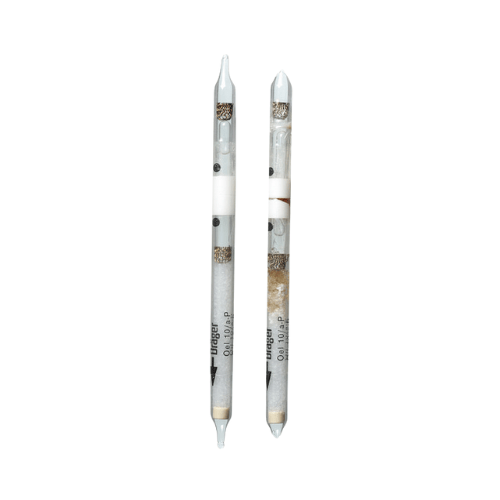

Dräger Tubes For Short Term Measurements: Oil 10/a-P
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Oil 10/a-P).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
| Part no | Dräger Tube | Substance | Measurement Range |
| 6728371 | Oil (Mist and Vapour) 10/a-P | Di-sec-Octyl Phthalate | Qualitative |
| Oil | 0.1 to 1 mg/m3 |
Application Range:
Use in Aerotest 5000, Aerotest Alpha, MultiTest med. Int.,
| Standard Measuring Range: | 0.1 to 1 mg/m3 |
| Test Volume: | - |
| Flow Rate: | - |
| Time for Measurement: | (see details in Standard Deviation: operating instructions for Aerotest) |
| Standard Deviation: | (see details in Standard Deviation: operating instructions for Aerotest) |
| Colour Change: | white to pale beige or yellow |
Ambient Operating Conditions:
| Temperature: | 10 to 30 °C |
| Absolute Humidity: | see details in operating instructions for Aerotest |
| Pressure: | The tube may only be used for depressurized compressed air |
Reaction Principle:
Oil + H2SO4 ~> beige-yellow reaction product
Cross Sensitivity:
The total concentration of mineral and synthetic aerosols (mist) and oil vapors is indicated. Other organic compounds with high molecular weights are indicated as well but with different sensitivity. Polyethylene glycol and silicone oils are not indicated.
Evaluation:
In combination with a Dräger gas detector pump the oil tube can also be used to analyse the air in work rooms. The measurement period depends upon the oil used. Please find a list of the oils tested under www.draeger.com/voice..
For more information on Dräger-Tubes click the image below.
To view our range of Dräger pumps please click below.
