Description

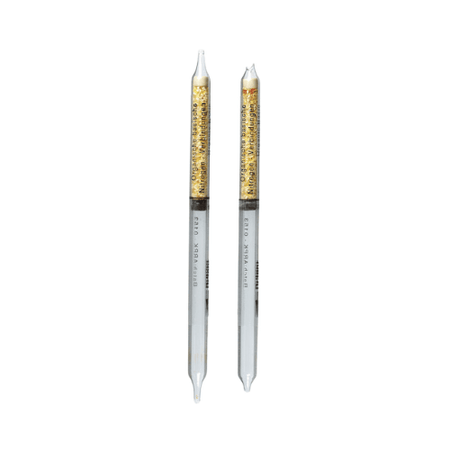

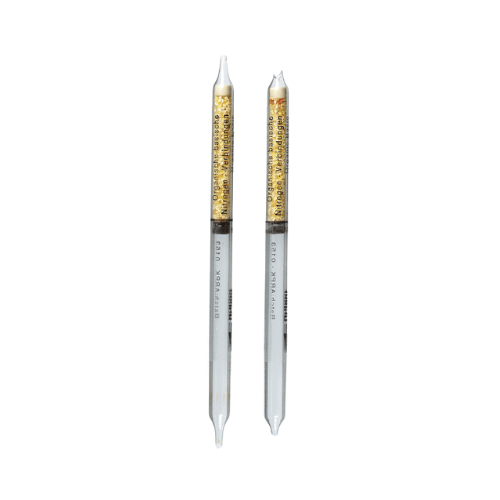

Dräger Tubes For Short Term Measurements: Organic Basic Nitrogen Compounds
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Organic Basic Nitrogen Compounds).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | 1 mg/m3 corresponds to a discoloration of 1 to 2 mm in length. |
| Number of Strokes n: | 8 |
| Time for Measurement: | approx. 1.5 min |
| Standard Deviation: | ± 50 % |
| Colour Change: | yellow to orange red |
Ambient Operating Conditions:
| Temperature: | 0 to 40 °C |
| Absolute Humidity | < 50 mg H2O / L |
Reaction Principle:
NR3 + KBiI4 ~> orange red reaction product
Cross Sensitivity:
Various organic basic nitrogen compounds are indicated. It is impossible to differentiate between them..
