Description

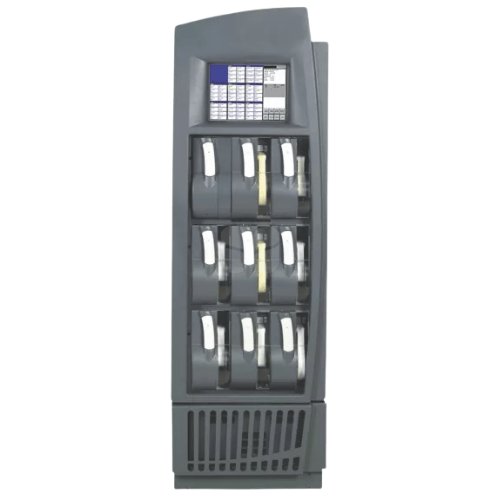

Honeywell Vertex Base Rack Enclosure
VertexTM is a cost effective, continuous hazardous gas monitor, capable of monitoring up to 72 points with 9 analysers in a small footprint. Sampling points can be up to 400 feet (121m) from the monitor and routed to more than one analyser. The rack comes ready for easy, in-field expansion up to 72 points. The rack has redundant pumps and power supplies for increased up-time. The data acquisition center has hot swappable RAID hard drives and an anti-glare LCD touchscreen.
The VertexTM has room for nine (9) universal Chemcassette analyzers, or for three (3) Pyrolyzer analyzers and three (3) Universal Chemcassette analysers. Each 8-point Chemcassette analyser is user configurable to the desired gas family/type. More than 40 different gases are available for detection.
Optional communication capabilities include: LonWorks, DeviceNet, Profibus, ControlNet, Modbus Plus, DF1 interface which is configurable for RS 485, RS 422 or RS 232.
Easy to use
- Touch screen for easy access to data
- Software updates via CD-ROM or network to all system components
- Configuration profile editing and data retrieval are all achievable without taking unit offline
- Radio frequency identification tag (RFID) ensures Chemcassettes are installed into appropriately programmed analyzer, eliminating human error
- On-line help system
Security
- Multiple levels of password protection
- Reconfigure security setup without taking unit offline
Low cost of ownership
- Vertex’s smaller footprint and greater density of points reduce your cost per point
- Eight points per analyzer lowers Chemcassette costs
- Maximized 72 point systems provide low cost per point as compared to other continuous monitors
- One system monitors up to nine gas families and more than 40 gases
- You can split your sample to more than one analyzer
Easy to maintain
- Vertex uses cost-effective XP Chemcassettes, providing up to three months of continuous monitoring
- Simplified replacement of Chemcassettes and automated optics verification
- No dynamic calibration required
- No flow balancing
- Easy access to analyzers, pumps, power supplies and touch screen from front panel
- Onscreen interactive electronic manual
Advanced communications
- Built-in configurable PLCs with optional 176 relay contacts
- Standard OPC interface for easy integration into your existing factory automation system or HMI
- Optional Ethernet/CIP, LONWORKS, DeviceNetTM, DF1 Interface, PROFIBUS, Modbus Plus, Modbus/TCP or ControlNet outputs available
- Optional Chemcam camera permits viewing of stain, locally or remotely, for proof of gas event. Image is electronically saved for future retrieval.
- Optional remote control/viewing software enables total visualization of the monitor screens at a remote PC
This enclosure contains the data acquisition center, redundant pumps and power supplies, touch screen keyboard, all cable management and ancillary support necessary to install up to nine (9) Analyzers, and an accessory kit. Accessory Kit includes backup CDs of all appropriate software, electronic manual, installation drawings, auxiliary analyzer key and 50 feet (15m) of exhaust tubing. This unit should be ordered with one of the relay or serial communications interfaces detailed in this price list.
Order the following items for a complete system:
- Base rack
- Analysers
- Optional components
- Installation items
- Chemcassette(s) needed for each analyser
Option components include:
- Chemcam
- Keyboard kit
- Output relays (non-isolated or isolated)
- LonWorks
- DeviceNet
- ControlNet
- Ethernet / CIP
- Modbus Plus
- Modbus / TCP
- Profibus
- DF1 Interface
- Remote Software
- Line integrity test
