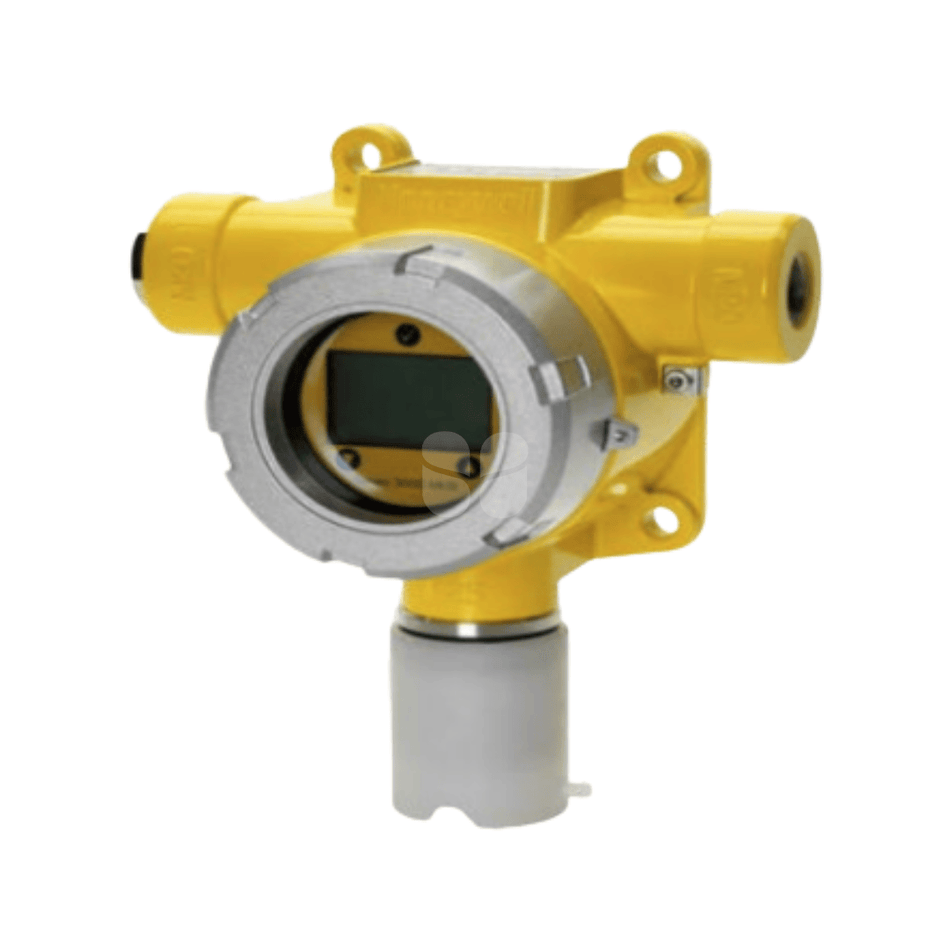

The Series 3000 range of transmitters provide comprehensive monitoring
of toxic and Oxygen gas hazards in potentially explosive atmospheres.
Suitable for mounting both indoors and out, they are available in two
versions and offer Searchline Excellent versatility. The Series 3000 MkII is
contained in a flameproof housing, has an intrinsically safe sensor
connection and is for use in predominantly Zone 1 applications. However
with the use of the optional remote mounting kit the sensor of the
Series 3000 MkII can be mounted in a Zone 0 environment.
The Series 3000 MkIII is for use with a separate suitable IS barrier
(to be ordered separately) allowing the complete transmitter to be used
in Zone 0 applications.
These low powered gas detectors all feature a loop powered 4-20mA
connection, making them ideal for both new and retrofit installations.
Users can configure the detector through the use of the easy to read LCD
and intuitive interface while fault diagnostic software and a
programmable calibration period greatly simplify maintenance
procedures.
The intrinsically safe smart sensors are supplied pre-configured and can
be ‘hot swapped’ without having to remove power to the detector, saving
time and money during commissioning and routine servicing. A remote
sensor mounting kit is available that allows the sensor to be mounted up
to 50’ (15m) from the transmitter, making it ideal for operation in areas that
are difficult to access.
Series 3000 MkII and Mk III are supplied with all necessary accessories for
easy installation. The detector has 4 mounting lugs for surface mounting
or and optional pipe mounting kit. Electrical installation can be made using
either conduit or cable with suitable mechanical protection. Available in
painted Marine Grade Al or Stainless Steel 316 with two ¾” NPT entries or
two M20 entries with a suitable blanking plug (certification type dependent)
included as standard. A weatherproof cap is also included for use in the
harshest outdoor conditions.
